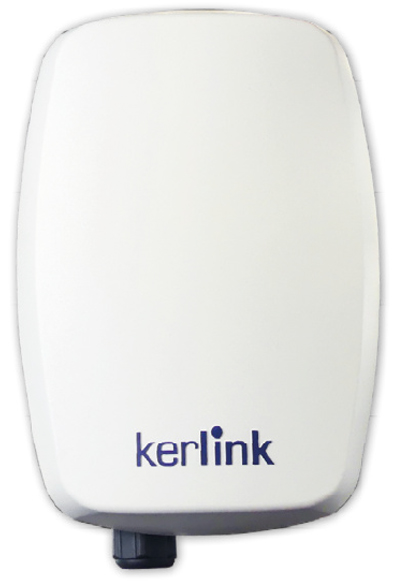

WirnetTM iStation LoRaWAN® Outdoor Gateway for the Internet of Things
The “Wirnet™ iStation” is the ideal gateway to support your smart city, smart industry or any other smart project, combining simplicity of installation, unique superior coverage and operational excellence.
emoji_transportation
Smart Cities
factory
Smart Industry
water_drop
Smart Metering
agriculture
Smart Agriculture & Environment
Kerlink is certified ISO9001: 2015 by AFNOR certification.
The Quality Management System gives high priority to
Customer satisfaction and progress implementation.
Key Features
- Outdoor LoRa® Gateway,
- Carrier grade casing (IP67) for industrial use,
- Supported unlicensed bands : 863-874.4MHz (EMEA, India), 902-928MHz (North America), 915-928MHz (APAC, Latin America),
- Supported LoRaWAN® regional parameters: EU863-870, IN865-867, RU864-870, US902-928, AU915-928, AS923, KR920-923,
- 8ch RX (125 kHz, multi Spreading Factor) + 1ch RX (250KHz or 500kHz, mono Spreading Factor) + 1ch RX (FSK) to get 10ch RX + 1ch TX,
- Backhaul connectivity: 4G Worldwide module with 3G/2G fallback and Ethernet (RJ45),
-
Powered by:
- PoE (Injector, switch, …), both Mode A and Mode B (802.3af specifications),
- +/- 48VDC through RJ45 (isolated power),
- Highly secured device relying on a hardware secure core.
Key Differentiators
- High performance, reliability & robustness
- Carrier grade design with excellent heat dissipation
- Semtech Reference Design v1.5 components.
- Security HW and SW architecture
- SecureBoot (Signed firmware),
- SecureStorage (keys and certificates in secured area) using ProvenCore™ solution,
- Secured links and backhaul protection (OpenVPN/IPsec),
- Reboot (watchdog) and recovery to previous Management config (or factory config if the boot issue is not fixed).
Easy deployment
- No need to open the casing during installation (waterproof connectors for RJ45, SIM card…),
- Easy installation mounting kit,
- Fully integrated and internal antennas GPS, 4G, LoRa (peak gain=2,6dBi) : no external antenna installation required (external LoRa antenna 3dBi or 6dBi possible as an option),
-
Easy access to connectivity:
- Ethernet 10/100 Mbps (RJ45),
- SIM card (mini-SIM format),
- Two LEDs controlled by SW (programmable):
- 1 x green LED for power,
- 1 x red LED for system status (update, boot behavior, LoRa status, backhaul…),
- USB (Type C) connector for debug probe,
- Multifunction button for On/Off/Reset/Factory reset,
- Simple and convenient configuration, management, control and update using the Kerlink Wanesy™ Management Center (Alarm notifications, firmware upgrade, platform statistics, RF statistics, RF spectrum analyzer...),
- Remotely configurable, manageable, via intuitive Web GUI,
- Remote access via SSH.
Technical Features
- Sniffer for LBT (Listen Before Talk),
- Built-in high rejection SAW filters,
- Rx Sensitivity: -141 dBm (SF12),
- Conducted TX Power: configurable from 5dBm to 27 dBm,
- Range -40°C +60°C,
- Humidity: 95%,
- Size : 265 x 165 x 100 mm,
- Weight : 1,4kg (mounting kit included),
- Spectrum analysis compliant,
- Capacitor for clean shut down of applications in case of power failure,
- Casing: IP67 Alu (Back), Polycarbonate (Front), Inox (mounting kit),
- Surge protection of the RF LoRa link (option),
- CPU: ARM Cortex A9,
- DDRAM 256MB,
- 8GB eMMC (6GB available for user),
Software Features
- Same Software as Wirnet™ iBTS and iFemtoCell: same
- user experience, quicker integration,
- Dynamic web interface (On-the fly modifications),
- Programmable Gateway: Toolchain, libraries and header files for compilation of in-house SW, or extra packages additions,
-
Including:
- Operating System: KerOS with embedded GNU/Linux based on Yocto 2.4 and LTS kernel 4.14,
- Native Language Support: Python2, C/C++ and Shell,
- Included packages: SQlite (Database), Connman/Ofono, NTPd, lighttpd.
Value-added Services
- Free access to Kerlink Wiki for customers
- Plug & Play installation (option),
- Wirnet™ iStation is part of the end-to-end LoRa® connectivity solution with Kerlink Wanesy™ Management Center, remote monitoring and Operations Management suite (option),
- Wanesy™ SPN2 for Small Private Network, embedding a LoRa Network Server on the Gateway (option),
- Maintenance Services (option),
- Kerlink Project Management: a comprehensive service offering and a global network of specialist integrators to support your entire project.
WanesyTM SPN (Small Private Network)LoRaWAN® Outdoor Gateway for the Internet of Things
“One box” solution for the IoT* (*IoT = Internet of Things)
Installed on the Wirnet™ iFemtoCell, iFemtoCell-evolution, or iStation, the Wanesy™ SPN offers a “One box” solution to quickly & easily collect and expose your IoT* data to your Business application. Specially designed for Small Private Networks, smart building, smart agriculture … the Wanesy™ SPN is the perfect solution to simplify your deployment.
Key Features
- Data available locally: embedded LNS (LoRaWAN™ Network Server) to collect and expose the LoRaWAN™ data of your Kerlink Wirnet™ Gateways.
- 0-touch deployment with Prestaging.
-
Evolutive architecture:
- Mono-gateway or f t™W irenme toCiFell, emtoCiFell-evolution, ationi St
- or amteuwltia-yg ollectincg ta odma fr t™W irenme toCiFell, emtoCiFell-evolution, iStation, ation St TS oor xposte eiB on t™ emat oCiFell, WemirtnoeCiFell-evolution atioorn . iSt
- Edge-computing ready: Open Linux environment, Node-RED compliant, in-house SW compliant.
- High performance, Security, reliability & robustness: Quality Management System certified ISO9001: 2015 by AFNOR certification, with permanent implementation of progress.
Technical Features
- Supported ISM bands: EU868, US915, AU923 (according HW capabilities)

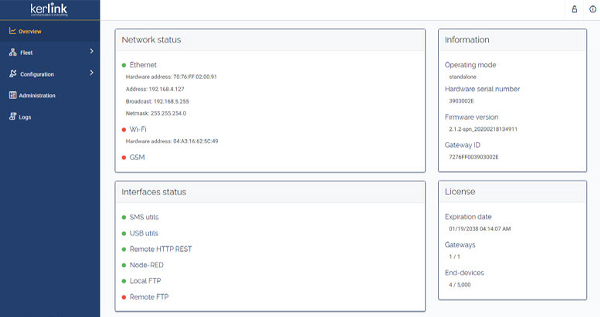

- Easy supervision: End-devices status, received data, sent data Gateway status (Gw by Gw management, no centralized management from the Master Gateway), Network status, Interface status
- Easy provisioning: massive import of your LoRaWAN™ enddevices and sensors

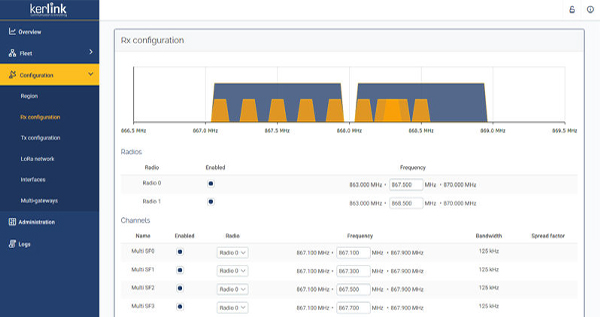

- LoRaWAN™ Radio management (Region, Rx, Tx configuration)
- Backhaul configuration
- Gw administration (upgrade, …)
- Web services, HTTPS REST API, Local FTP server, Remote SFTP access, SMS, USB flash drive
- Save and restore configuration
- Friendly and Dynamic web interface (On-the fly modifications),
- Logs
- Lifetime license

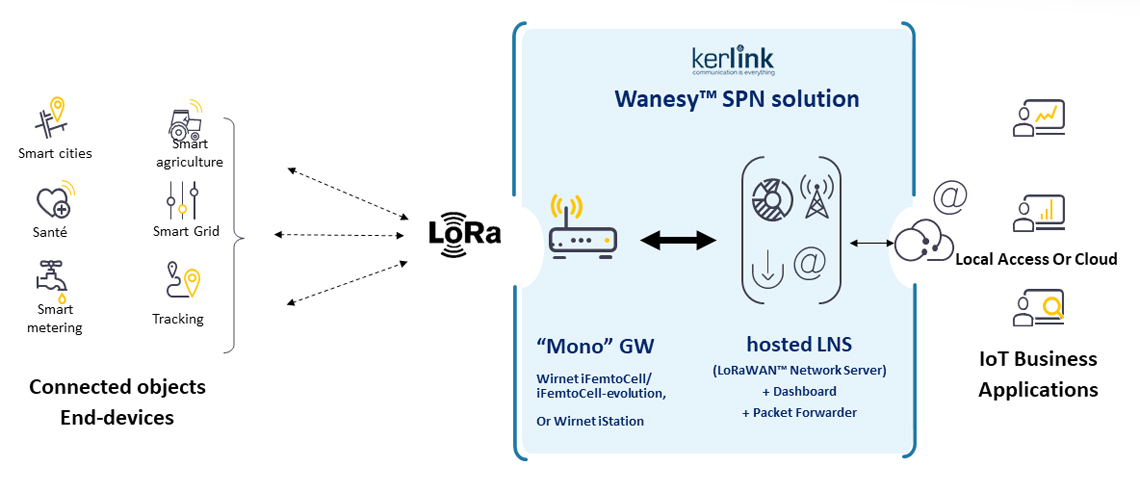

Mono-Gateway architecture

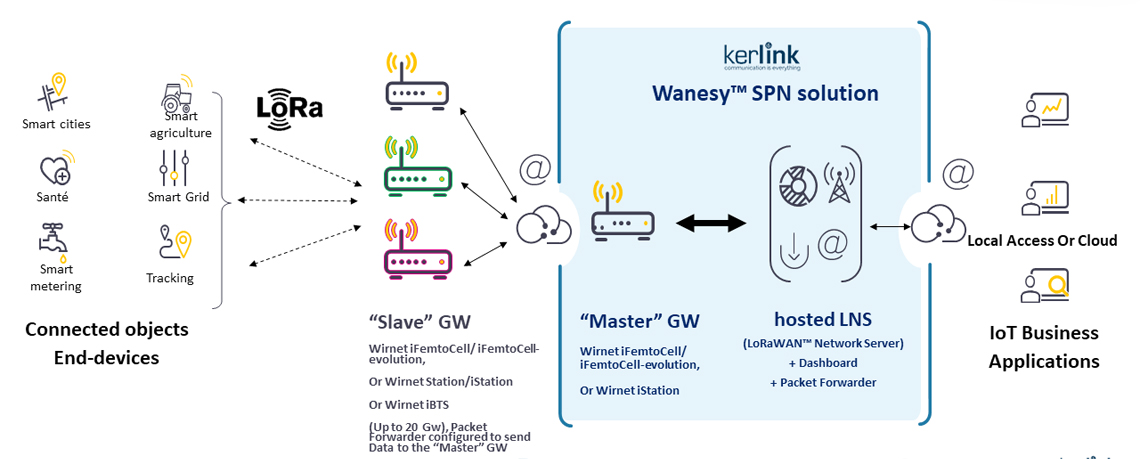

Multi-Gateway architecture
Value-added Services:
- Free access to Kerlink Wiki for customers
- Plug & Play installation (option),
- Maintenance Services (option),
- Kerlink Project Management: Kerlink supports you throughout your project by responding to your specific needs through its service offering and network of specialist integrators available worldwide (option).
